探索 TF-Hub CORD-19 Swivel 嵌入

在 TensorFlow.org 上查看

在 Google Colab 中运行

在 GitHub 上查看

下载笔记本

查看 TF Hub 模型

来自 TF-Hub 的 CORD-19 Swivel 文本嵌入模块 (https://tfhub.dev/tensorflow/cord-19/swivel-128d/1) 是为了支持研究人员分析与 COVID-19 相关的自然语言文本而构建的。这些嵌入是在 CORD-19 数据集中的文章标题、作者、摘要、正文和参考文献标题上训练的。

在这个 colab 中，我们将

分析嵌入空间中语义相似的词
使用 CORD-19 嵌入在 SciCite 数据集上训练分类器

设置

import functools
import itertools
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

import tensorflow.compat.v1 as tf
tf.disable_eager_execution()
tf.logging.set_verbosity('ERROR')

import tensorflow_datasets as tfds
import tensorflow_hub as hub

try:
  from google.colab import data_table
  def display_df(df):
    return data_table.DataTable(df, include_index=False)
except ModuleNotFoundError:
  # If google-colab is not available, just display the raw DataFrame
  def display_df(df):
    return df

2023-12-08 12:48:27.515971: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:9261] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2023-12-08 12:48:27.516018: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:607] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2023-12-08 12:48:27.517510: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1515] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

分析嵌入

让我们从通过计算和绘制不同术语之间的相关矩阵来分析嵌入开始。如果嵌入学习成功地捕获了不同词的含义，那么语义相似词的嵌入向量应该彼此靠近。让我们看看一些与 COVID-19 相关的术语。

# Use the inner product between two embedding vectors as the similarity measure
def plot_correlation(labels, features):
  corr = np.inner(features, features)
  corr /= np.max(corr)
  sns.heatmap(corr, xticklabels=labels, yticklabels=labels)


with tf.Graph().as_default():
  # Load the module
  query_input = tf.placeholder(tf.string)
  module = hub.Module('https://tfhub.dev/tensorflow/cord-19/swivel-128d/1')
  embeddings = module(query_input)

  with tf.train.MonitoredTrainingSession() as sess:

    # Generate embeddings for some terms
    queries = [
        # Related viruses
        "coronavirus", "SARS", "MERS",
        # Regions
        "Italy", "Spain", "Europe",
        # Symptoms
        "cough", "fever", "throat"
    ]

    features = sess.run(embeddings, feed_dict={query_input: queries})
    plot_correlation(queries, features)

2023-12-08 12:48:30.788390: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:30.951318: E external/local_xla/xla/stream_executor/cuda/cuda_driver.cc:274] failed call to cuInit: CUDA_ERROR_NO_DEVICE: no CUDA-capable device is detected

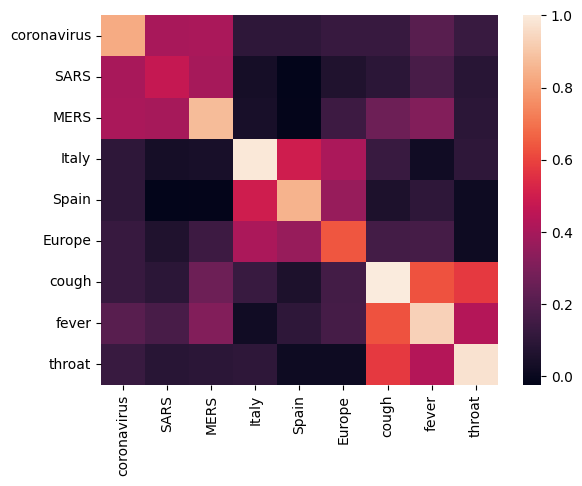

png

我们可以看到，嵌入成功地捕获了不同术语的含义。每个词都与其集群中的其他词相似（例如，“冠状病毒”与“SARS”和“MERS”高度相关），而它们与其他集群的术语不同（例如，“SARS”和“西班牙”之间的相似度接近 0）。

现在让我们看看如何使用这些嵌入来解决特定任务。

SciCite：引用意图分类

本节展示了如何将嵌入用于下游任务，例如文本分类。我们将使用 TensorFlow 数据集中的 SciCite 数据集来对学术论文中的引用意图进行分类。给定包含来自学术论文的引用的句子，对引用的主要意图进行分类，例如背景信息、方法使用或结果比较。

从 TFDS 设置数据集

class Dataset:
  """Build a dataset from a TFDS dataset."""
  def __init__(self, tfds_name, feature_name, label_name):
    self.dataset_builder = tfds.builder(tfds_name)
    self.dataset_builder.download_and_prepare()
    self.feature_name = feature_name
    self.label_name = label_name

  def get_data(self, for_eval):
    splits = THE_DATASET.dataset_builder.info.splits
    if tfds.Split.TEST in splits:
      split = tfds.Split.TEST if for_eval else tfds.Split.TRAIN
    else:
      SPLIT_PERCENT = 80
      split = "train[{}%:]".format(SPLIT_PERCENT) if for_eval else "train[:{}%]".format(SPLIT_PERCENT)
    return self.dataset_builder.as_dataset(split=split)

  def num_classes(self):
    return self.dataset_builder.info.features[self.label_name].num_classes

  def class_names(self):
    return self.dataset_builder.info.features[self.label_name].names

  def preprocess_fn(self, data):
    return data[self.feature_name], data[self.label_name]

  def example_fn(self, data):
    feature, label = self.preprocess_fn(data)
    return {'feature': feature, 'label': label}, label


def get_example_data(dataset, num_examples, **data_kw):
  """Show example data"""
  with tf.Session() as sess:
    batched_ds = dataset.get_data(**data_kw).take(num_examples).map(dataset.preprocess_fn).batch(num_examples)
    it = tf.data.make_one_shot_iterator(batched_ds).get_next()
    data = sess.run(it)
  return data


TFDS_NAME = 'scicite'
TEXT_FEATURE_NAME = 'string'
LABEL_NAME = 'label'
THE_DATASET = Dataset(TFDS_NAME, TEXT_FEATURE_NAME, LABEL_NAME)

让我们看看训练集中的一些标记示例

NUM_EXAMPLES = 20
data = get_example_data(THE_DATASET, NUM_EXAMPLES, for_eval=False)
display_df(
    pd.DataFrame({
        TEXT_FEATURE_NAME: [ex.decode('utf8') for ex in data[0]],
        LABEL_NAME: [THE_DATASET.class_names()[x] for x in data[1]]
    }))

训练引用意图分类器

我们将使用 Estimator 在 SciCite 数据集上训练分类器。让我们设置 input_fns 以将数据集读入模型

def preprocessed_input_fn(for_eval):
  data = THE_DATASET.get_data(for_eval=for_eval)
  data = data.map(THE_DATASET.example_fn, num_parallel_calls=1)
  return data


def input_fn_train(params):
  data = preprocessed_input_fn(for_eval=False)
  data = data.repeat(None)
  data = data.shuffle(1024)
  data = data.batch(batch_size=params['batch_size'])
  return data


def input_fn_eval(params):
  data = preprocessed_input_fn(for_eval=True)
  data = data.repeat(1)
  data = data.batch(batch_size=params['batch_size'])
  return data


def input_fn_predict(params):
  data = preprocessed_input_fn(for_eval=True)
  data = data.batch(batch_size=params['batch_size'])
  return data

让我们构建一个模型，该模型使用 CORD-19 嵌入，并在其顶部有一个分类层。

def model_fn(features, labels, mode, params):
  # Embed the text
  embed = hub.Module(params['module_name'], trainable=params['trainable_module'])
  embeddings = embed(features['feature'])

  # Add a linear layer on top
  logits = tf.layers.dense(
      embeddings, units=THE_DATASET.num_classes(), activation=None)
  predictions = tf.argmax(input=logits, axis=1)

  if mode == tf.estimator.ModeKeys.PREDICT:
    return tf.estimator.EstimatorSpec(
        mode=mode,
        predictions={
            'logits': logits,
            'predictions': predictions,
            'features': features['feature'],
            'labels': features['label']
        })

  # Set up a multi-class classification head
  loss = tf.nn.sparse_softmax_cross_entropy_with_logits(
      labels=labels, logits=logits)
  loss = tf.reduce_mean(loss)

  if mode == tf.estimator.ModeKeys.TRAIN:
    optimizer = tf.train.GradientDescentOptimizer(learning_rate=params['learning_rate'])
    train_op = optimizer.minimize(loss, global_step=tf.train.get_or_create_global_step())
    return tf.estimator.EstimatorSpec(mode=mode, loss=loss, train_op=train_op)

  elif mode == tf.estimator.ModeKeys.EVAL:
    accuracy = tf.metrics.accuracy(labels=labels, predictions=predictions)
    precision = tf.metrics.precision(labels=labels, predictions=predictions)
    recall = tf.metrics.recall(labels=labels, predictions=predictions)

    return tf.estimator.EstimatorSpec(
        mode=mode,
        loss=loss,
        eval_metric_ops={
            'accuracy': accuracy,
            'precision': precision,
            'recall': recall,
        })

超参数

EMBEDDING = 'https://tfhub.dev/tensorflow/cord-19/swivel-128d/1'
TRAINABLE_MODULE = False
STEPS =   8000
EVAL_EVERY = 200
BATCH_SIZE = 10
LEARNING_RATE = 0.01

params = {
    'batch_size': BATCH_SIZE,
    'learning_rate': LEARNING_RATE,
    'module_name': EMBEDDING,
    'trainable_module': TRAINABLE_MODULE
}

训练和评估模型

让我们训练和评估模型，以查看其在 SciCite 任务上的性能

estimator = tf.estimator.Estimator(functools.partial(model_fn, params=params))
metrics = []

for step in range(0, STEPS, EVAL_EVERY):
  estimator.train(input_fn=functools.partial(input_fn_train, params=params), steps=EVAL_EVERY)
  step_metrics = estimator.evaluate(input_fn=functools.partial(input_fn_eval, params=params))
  print('Global step {}: loss {:.3f}, accuracy {:.3f}'.format(step, step_metrics['loss'], step_metrics['accuracy']))
  metrics.append(step_metrics)

2023-12-08 12:48:33.010439: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
/tmpfs/tmp/ipykernel_22340/393120678.py:7: UserWarning: `tf.layers.dense` is deprecated and will be removed in a future version. Please use `tf.keras.layers.Dense` instead.
logits = tf.layers.dense(
2023-12-08 12:48:34.207730: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 0: loss 0.796, accuracy 0.676
2023-12-08 12:48:35.340060: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:36.577532: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 200: loss 0.711, accuracy 0.723
2023-12-08 12:48:37.442000: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:38.595031: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 400: loss 0.656, accuracy 0.746
2023-12-08 12:48:39.423699: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:40.561417: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 600: loss 0.637, accuracy 0.759
2023-12-08 12:48:41.356471: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:42.537650: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 800: loss 0.619, accuracy 0.764
2023-12-08 12:48:43.355380: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:44.476080: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 1000: loss 0.609, accuracy 0.766
2023-12-08 12:48:45.316227: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:46.504330: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 1200: loss 0.598, accuracy 0.771
2023-12-08 12:48:47.340830: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:48.466646: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 1400: loss 0.593, accuracy 0.767
2023-12-08 12:48:49.286918: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:50.457809: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 1600: loss 0.595, accuracy 0.758
2023-12-08 12:48:51.249988: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:52.446986: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 1800: loss 0.571, accuracy 0.779
2023-12-08 12:48:53.274230: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:54.434837: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 2000: loss 0.568, accuracy 0.783
2023-12-08 12:48:55.299387: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:56.475862: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 2200: loss 0.571, accuracy 0.776
2023-12-08 12:48:57.269084: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:48:58.397282: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 2400: loss 0.566, accuracy 0.778
2023-12-08 12:48:59.235274: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:00.356780: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 2600: loss 0.557, accuracy 0.784
2023-12-08 12:49:01.218506: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:02.386721: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 2800: loss 0.563, accuracy 0.778
2023-12-08 12:49:03.199324: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:04.318687: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 3000: loss 0.550, accuracy 0.786
2023-12-08 12:49:05.110495: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:06.261538: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 3200: loss 0.562, accuracy 0.776
2023-12-08 12:49:07.171228: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:08.667504: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 3400: loss 0.552, accuracy 0.781
2023-12-08 12:49:09.484246: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:10.600743: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 3600: loss 0.550, accuracy 0.783
2023-12-08 12:49:11.377686: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:12.537445: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 3800: loss 0.552, accuracy 0.778
2023-12-08 12:49:13.352478: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:14.508544: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 4000: loss 0.542, accuracy 0.790
2023-12-08 12:49:15.292799: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:16.477257: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 4200: loss 0.548, accuracy 0.782
2023-12-08 12:49:17.268025: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:18.402629: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 4400: loss 0.543, accuracy 0.787
2023-12-08 12:49:19.248701: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:20.367887: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 4600: loss 0.555, accuracy 0.776
2023-12-08 12:49:21.180510: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:22.369558: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 4800: loss 0.547, accuracy 0.781
2023-12-08 12:49:23.181419: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:24.311083: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 5000: loss 0.547, accuracy 0.781
2023-12-08 12:49:25.155068: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:26.331803: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 5200: loss 0.545, accuracy 0.781
2023-12-08 12:49:27.130941: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:28.297888: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 5400: loss 0.537, accuracy 0.791
2023-12-08 12:49:29.083932: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:30.202671: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 5600: loss 0.537, accuracy 0.792
2023-12-08 12:49:30.978953: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:32.138923: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 5800: loss 0.539, accuracy 0.783
2023-12-08 12:49:32.917647: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:34.096059: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 6000: loss 0.547, accuracy 0.781
2023-12-08 12:49:34.883889: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:36.023115: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 6200: loss 0.543, accuracy 0.780
2023-12-08 12:49:36.813851: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:37.968537: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 6400: loss 0.552, accuracy 0.779
2023-12-08 12:49:38.770655: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:39.883148: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 6600: loss 0.539, accuracy 0.789
2023-12-08 12:49:40.754775: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:42.177644: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 6800: loss 0.544, accuracy 0.781
2023-12-08 12:49:42.983284: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:44.163402: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 7000: loss 0.549, accuracy 0.776
2023-12-08 12:49:44.950029: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:46.082210: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 7200: loss 0.541, accuracy 0.782
2023-12-08 12:49:46.875834: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:48.020500: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 7400: loss 0.537, accuracy 0.788
2023-12-08 12:49:48.796410: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:49.917295: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 7600: loss 0.536, accuracy 0.784
2023-12-08 12:49:50.722712: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
2023-12-08 12:49:53.921858: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
Global step 7800: loss 0.535, accuracy 0.788

global_steps = [x['global_step'] for x in metrics]
fig, axes = plt.subplots(ncols=2, figsize=(20,8))

for axes_index, metric_names in enumerate([['accuracy', 'precision', 'recall'],
                                            ['loss']]):
  for metric_name in metric_names:
    axes[axes_index].plot(global_steps, [x[metric_name] for x in metrics], label=metric_name)
  axes[axes_index].legend()
  axes[axes_index].set_xlabel("Global Step")

png

我们可以看到，损失迅速下降，而准确率尤其迅速上升。让我们绘制一些示例，以检查预测与真实标签的关系

predictions = estimator.predict(functools.partial(input_fn_predict, params))

first_10_predictions = list(itertools.islice(predictions, 10))

display_df(
  pd.DataFrame({
      TEXT_FEATURE_NAME: [pred['features'].decode('utf8') for pred in first_10_predictions],
      LABEL_NAME: [THE_DATASET.class_names()[pred['labels']] for pred in first_10_predictions],
      'prediction': [THE_DATASET.class_names()[pred['predictions']] for pred in first_10_predictions]
  }))

2023-12-08 12:49:55.139497: W tensorflow/core/common_runtime/graph_constructor.cc:1583] Importing a graph with a lower producer version 27 into an existing graph with producer version 1645. Shape inference will have run different parts of the graph with different producer versions.
/tmpfs/tmp/ipykernel_22340/393120678.py:7: UserWarning: `tf.layers.dense` is deprecated and will be removed in a future version. Please use `tf.keras.layers.Dense` instead.
  logits = tf.layers.dense(

我们可以看到，对于这个随机样本，模型在大多数情况下都预测了正确的标签，这表明它可以很好地嵌入科学句子。

下一步是什么？

现在您已经对来自 TF-Hub 的 CORD-19 Swivel 嵌入有了更多了解，我们鼓励您参加 CORD-19 Kaggle 竞赛，为从与 COVID-19 相关的学术文本中获得科学见解做出贡献。

参加 CORD-19 Kaggle 挑战赛
详细了解 COVID-19 开放研究数据集 (CORD-19)
有关 TF-Hub 嵌入的文档和更多信息，请访问 https://tfhub.dev/tensorflow/cord-19/swivel-128d/1
使用 TensorFlow Embedding Projector 探索 CORD-19 嵌入空间
